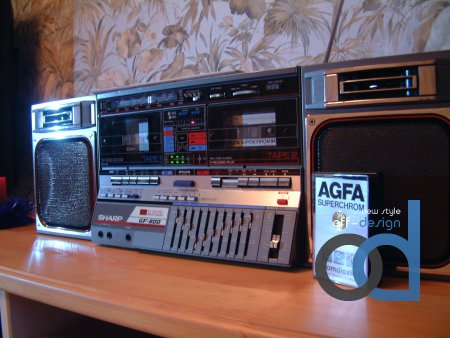

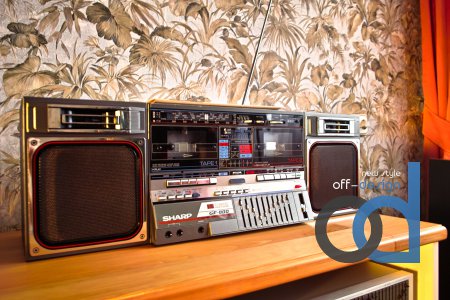

Sharp gf-800 1985

SPECIFICATIONS (SHARP 800H)
Power source:                             AC 110V - 127V and 220 -240V, 50/60Hz

                                               DC 1 5V (UM/SUM-1 or R20 typeх10,

                                                  or external 15V DC)
Output power:                            MPO:30W (15W + 15W) (AC operation)

 (DIN 45 324)                            RMS: 26W (13W +13W) (DC operation, 10% distortion)
Dimensions:                              Width; 680 mm (26-13/16")
                                                 Height;225mm (8-7/8")

                                                 Depth; 180mm (8-1/4")
Weight:                                     8.8kg(19.4lbs.) without batteries

TAPE RECORDER
Tape: Compact cassette tape
Frequency response:                    30Hz- 14,000Hz (normal tape)
                                                30Hz -16,000Hz (CrO₂ tape)
                                                30Hz - 17,000Hz (metal tape)
Signal/noise ratio:                   55 dB (Deck 1, playback)

                                           60 dB (Deck 2, recording with Dolby NR)
Input impedance:                    External mic; 600 ohms

                                           Phono/line in; 50 kohms/50 kohms
Loaded impedance:               Headphones; 8 ohms 32 ohms

External speakers;                 8 ohme- 16 ohms

Line out;                                0.6V/50 kohms

RADIO
Frequency range:                       LW:150 kHz - 285 kHz

                                              MW: 526.5kHz - 1606.5kHz

                                              SW: 5.95 MHz-18 MHz

                                               FM; 87.6MHz - 108 MHz

SPEAKER
Speakers:                             16cm (6-1/2") free-edge woofer х 2 ,

                                            5 cm tweeter х 2
Impedance:                           8 ohms
Input:                                     26W (maximum)
